Description

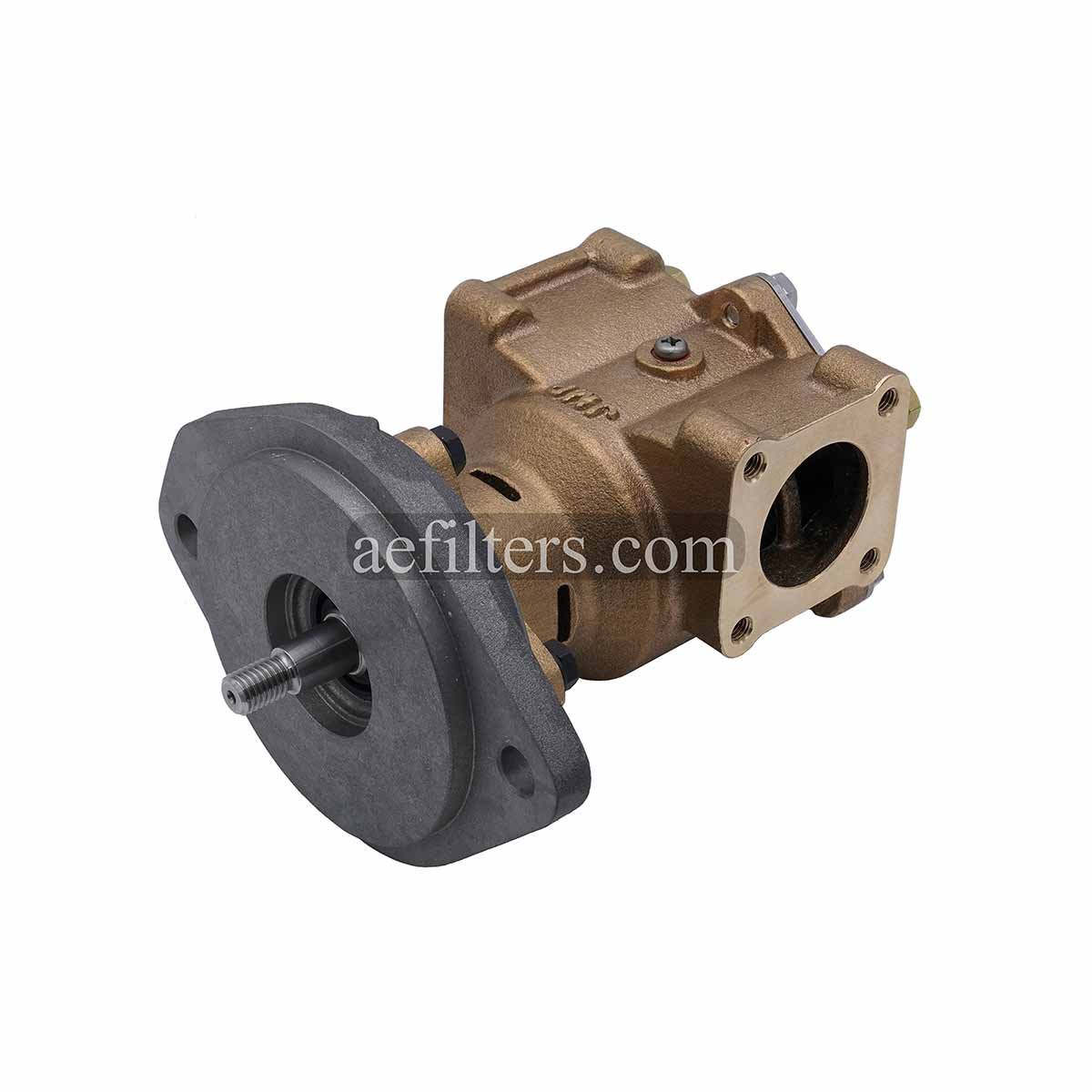

#JPR-S7632 JMP Marine Caterpillar Replacement Raw Water Engine Cooling Pump
Includes:
JMP Caterpillar Replacement Engine Cooling Pump #JPR-S7632
QTY: 1
Product Information:
| SPECIFICATION | JPR-S7632 |
|---|---|
| Uses JMP Impeller p/n | 7608-01 (Use on JPR-S7632). Search 7608-01K Note: JMP Impeller 7608-01 also used to replace Sherwood 27000 |
| Port Type | 1 3/4" Flange |
| Pump Weight (approx) | 14.00 LBS (6.36 KG) |
| Replaces Genuine Caterpillar Pump p/n(s) | Caterpillar 4P7168, 113-1109, 152-8392, 167-4252, 170-6116 Note: 4P7168 for Engine Model 3116 / Sherwood P1710A/C/X 113-1109 for Engine Model 3126 / Sherwood P1726X (replaced by P1732C) 152-8392 for Engine Model 3126 / Sherwood P1726X (replaced by P1732C) 167-4252 for Engine Model(s) 3126B, C7 / Sherwood P1726X (replaced by P1732C) 170-6116 for Engine Model(s) 3126, 3126B, C7, C9 / Sherwood P1726X (replaced by P1732C) |
| Genuine Caterpillar Impeller p/n | CAT Impeller 7E0321 (On Engine Models: 3116, 3126, 3126B, 3208, C7, C9) Please Note: CAT 7E0321 = JMP 7600-01 (replacement Impeller to use) JMP 7608-01 (Replacement Impeller to use) = Sherwood 27000 |
| For Engine Model(s): | 3116, 3126, 3126B, C7, C9 |
| Replaces Sherwood Pump p/n(s): | P1710, P1710-01, P1710-02, P1710-04, P1710A, P1710C, P1710X, P1726, P1726X, P1732-01, P1732-02, P1732A, P1732C, P1732X Note: P1726X replaced by P1732C |
| Sherwood Pump Impeller P/N: | 17000K (note: JMP 7600-01K replaces Sherwood 17000K) |
| Parts Internally Compatible to Genuine | NO (Changes Made to Impeller, Wear Plate, Cam, Mechanical Seal, and Shaft for Better Quality & Performance) |
| Major Service Kit (All Internal Parts) *Sold Separately | You can use the JMP parts Kits listed below to also service OEM / Genuine Brand pumps but MUST use CAT Mechanical Seal p/n: 4204328 in place of JMP Mechanical Seal MCSSET0008. MCSSET0008 is only for JPR-CT3054 JMP Marine Brand Pump. Why was Mechanical Seal Changed? To provide a longer life mechanical seal for longer lasting product and performance |
| Major Service Kit (All Internal Parts) *Sold Separately | JSK0072 (For JPR-S7632 Pump) |
| Minor Service Kit *Sold Separately | JSM0002 (For JPR-S7632 Pump) |
Features:
- 100% Plug & Play Replacement
- Universal Type
- Heavy Duty Marine Grade Casting
- Marine Grade Shaft (3X Series Non-Magnetic)
- O-Ring End Cover Packing
- Spline Drive Shaft (Not Key Drive)
- High Performance Impeller
- High Volume Flow Capacity
- Fast Flow Velocity
- CAT Impeller 7E0321 = Use JMP 7600-01
- JMP Impeller 7608-01 = Also used to Replace Sherwood 27000
Please note that shipping cost calculations are based on packaged weight which can be higher than the actual product weight.
SHIPPING COST SAVINGS – BULK ORDERS:
Possible discounts on total shipping costs for multiple unit orders; please contact sales department at sales@aefilters.com or by phone at (022) 23827442 for bulk order shipping quotes. Bulk orders are usually based on an order of 3 units or more.
SHIPPING COST SAVINGS – BULK ORDERS:
Possible discounts on total shipping costs for multiple unit orders; please contact sales department at sales@aefilters.com or phone (022) 23827442 for bulk orders. Bulk orders usually based on 3 units or more.
1 Year Manufactures Warranty
