Description

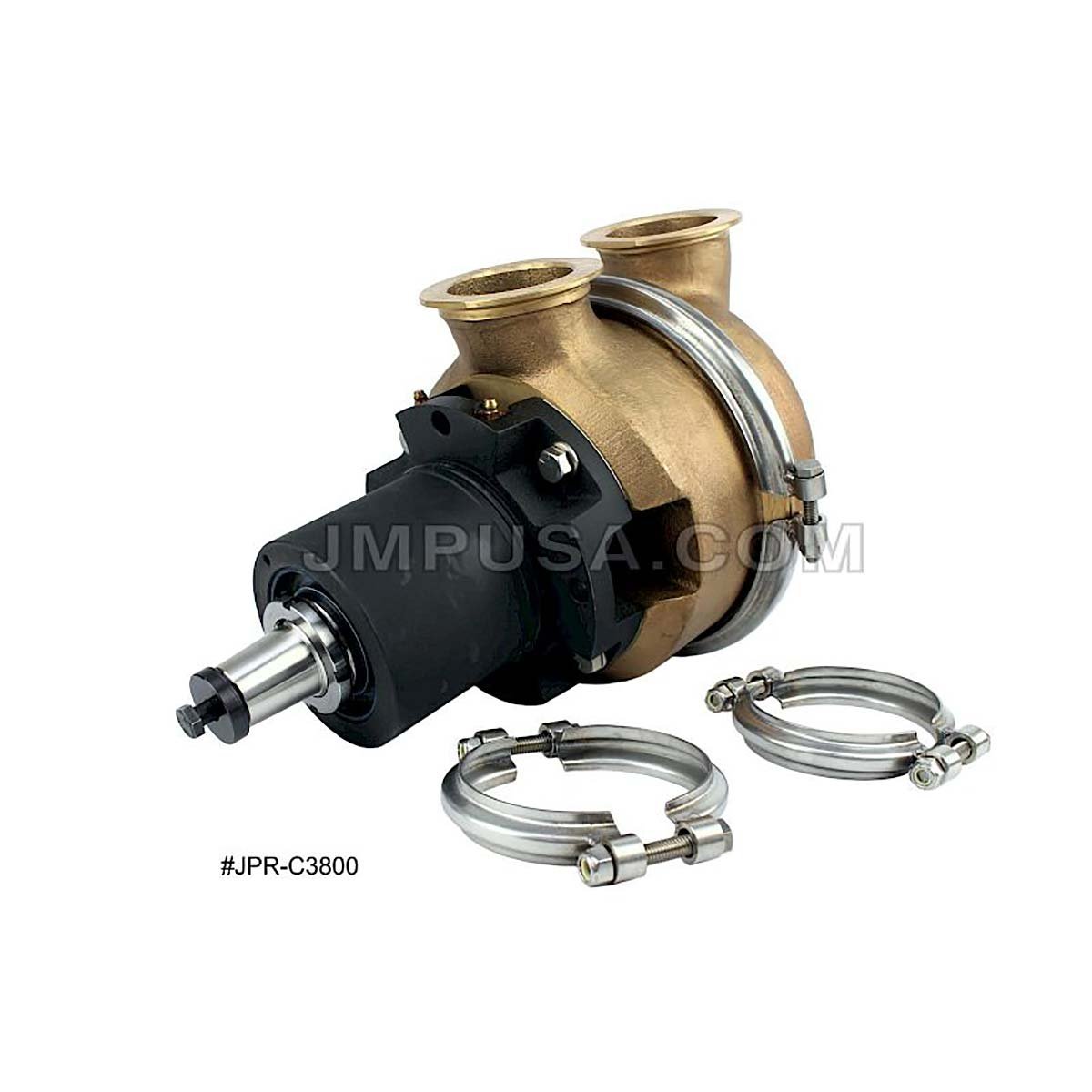

#JPR-C3800 JMP Marine Cummins Replacement Raw Water Engine Cooling Pump
*Without Drive Gear
Includes:
JMP Cummins Replacement Engine Cooling Pump #JPR-C3800
QTY: 1
Port C-Clamps (x2)
Does Not Include Drive Gear (sold separately)
*Gear is JMP #GEA0015
Product Information:
| SPECIFICATION | JPR-C3800 |
|---|---|
| JMP Bronze Impeller | IMP002603 (Bronze Impeller) |
| Port Type | Flange 2" |
| Pump Weight (approx) | 89 LBS (40.45 KG) |
| Replaces Genuine Engine MFG Sea Water Pump P/N | Cummins 3049157, 3085649, 3897669 |
| Genuine Cummins Impeller P/N | 3897657 |
| For Engine Model(s): | K38, KT38M, KTA38M, KTA50M |
| Replaces Pump P/N(s): | GILKES |
| Cummins Impeller P/N | 3897657 |
| Compatible to Genuine | YES |
| Major Service Kit (All Internal Parts) *Sold Separately | JSK0123 (Individual Parts Sold Separately in SPARE PARTS Section) |
| Seal Service Kit *Sold Separately | JMK0001 |
What is Your Correct Pump for KTA38 / KTA50 Engine Model & P/N?
When wanting to match up the correct Cummins replacement pump you do not want to rely on just pump pictures and engine models since Cummins has 3 different pumps for the KTA50 engine models for instance; so you want to always be sure to check what Genuine Cummins pump part number you have to properly find the JMP pump replacement for you.
JMP Marine’s #JPR-C3800 (replaces Cummins 3085649 / 3049157 / 3897669) is the replacement pump for the older style Cummins Series which uses 2 pumps (so 38 Liters). Cummins then developed a new pump for KTA38 and KTA50 Series which replaces the 2 pump setup; one is from Jabsco and the other is from Gilkes.
1) Engine With One Pump Setup – JABSCO VORTEX PUMP:
Vortex Pump (KTA38, KTA50 Series)
Make: JABSCO
JABSCO P/N: 15780-0000
Cummins P/N: 3393018 / 4314820 / 4314522
Engine Models: KTA38M0, KTA38M1, KTA38M2, KTA50M0
Jabsco Bronze Centrifugal Impeller Kit (Includes Wear Ring): JA 15298-1020
Jabsco Major Kit (All internal Parts except Centrifugal Impeller & Wear Ring): JA 99202-1000
JMP Marine #JPR-C3800V REPLACEMENT IMPELLER KIT – Used in Vortex Pump Above:
JSK0118 – Replaces JA 15298-1020
*includes Bronze Impeller & Wear Ring
JMP Marine #JPR-C3800V REPLACEMENT MAJOR SERVICE KIT – Used in Vortex Pump Above:
JSK0117 – Replaces JA 99202-1000
*Includes all internal parts except bronze impeller & wear ring
2) Engine With One Pump Setup – LRG “GILKES” PUMP:
Make: GILKES
Cummins P/N: 3849284 / 3897988
Engine Models: KTA30 / KTA50
If this is the pump you are looking for please note that JMP does not currently offer a replacement pump or parts for this version.
Features:
- 100% Plug & Play Replacement
- Compatible with Genuine
- Heavy Duty Marine Grade Casting
- Heavy Duty Durability
- Marine Grade Shaft (3X Series Non-Magnetic)
- High Performance Bronze Impeller
Please note that shipping cost calculations are based on packaged weight which can be higher than the actual product weight.
SHIPPING COST SAVINGS – BULK ORDERS:
Possible discounts on total shipping costs for multiple unit orders; please contact sales department at sales@aefilters.com or by phone at (022) 23827442 for bulk order shipping quotes. Bulk orders are usually based on an order of 3 units or more.
SHIPPING COST SAVINGS – BULK ORDERS:
Possible discounts on total shipping costs for multiple unit orders; please contact sales department at sales@aefilters.com or phone (022) 23827442 for bulk orders. Bulk orders usually based on 3 units or more.
1 Year Manufactures Warranty
